Overview

The XXL-LCD module has 5 points wide and 7 points heigh - each pont is a 36*36 millimeter LCD.

It is designed for easy assembly and integration into existing solutions for clock displays, measurement points in open offices, or focal points for operator attention.

Any usage is possible, this XXL-LCD that can be stacked to a 10*10 meter large display, if you have anough power available.

Key Features:

Low Power Consumption

High Contrast

Easy Integration

Versatile Applications

Up to 51 * 36 modules cover an area of 100m²

Usage Scenarios:

LCD Mode (For Daylight or Well-Lit Environments)
Suitable for environments with ample natural or artificial light.

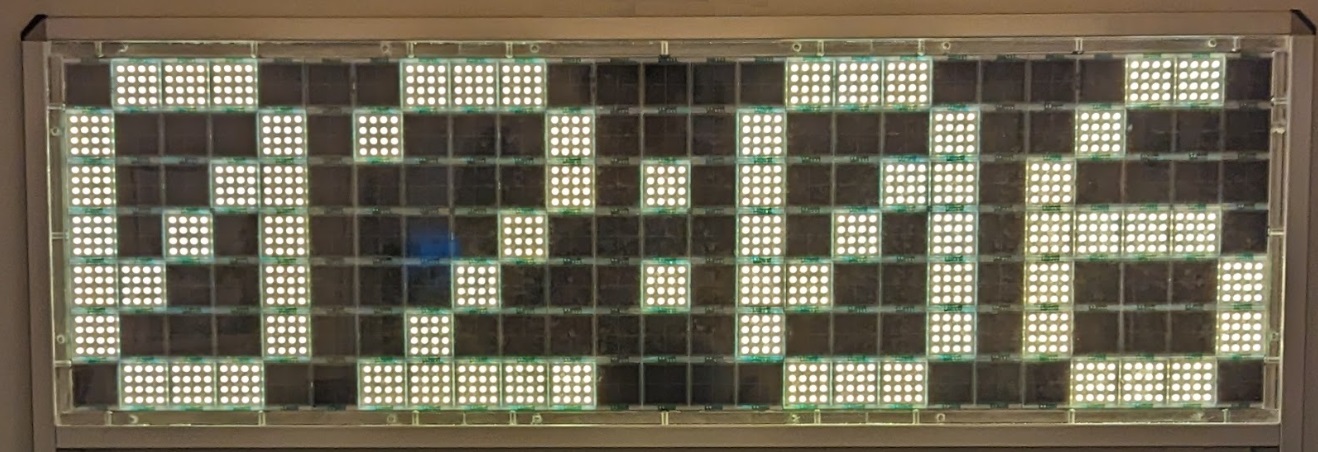

LED Mode (For Dark Rooms or Evening/Night)
Ideal for darker environments or during the evening/night.

Technical specifications

Power Consumption:

LCD Mode: 9mA per module; Maximum of 50 modules on USB

LED Mode: 100mA per module; Maximum of 5 modules on USB

Power consumption varies with LED intensity

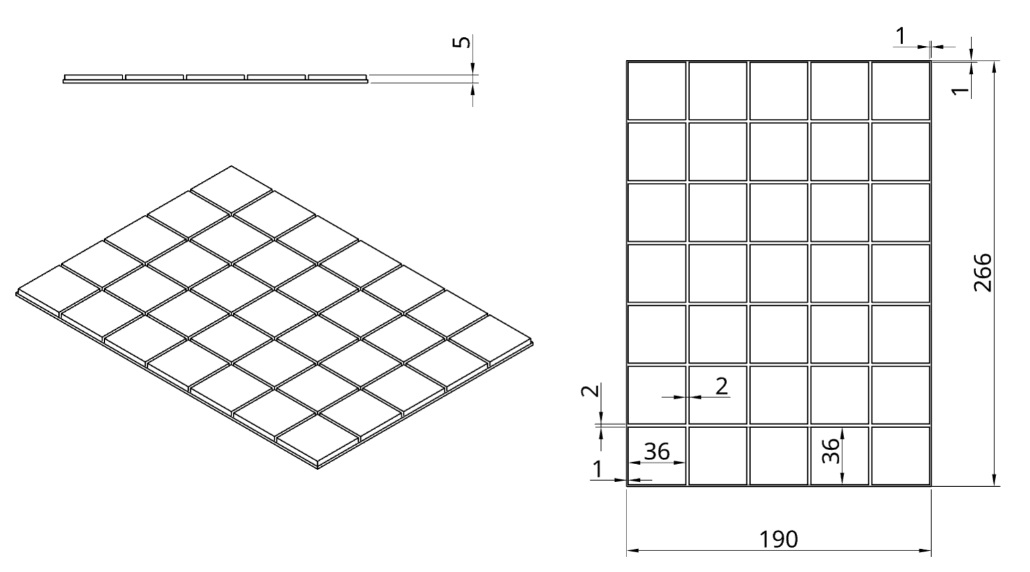

Physical Dimensions:

Overall Width: 205 mm
Overall Height: 290 mm
Thickness: 15 mm
5 LCD points horizontally, 7 LCD points vertically
Each LCD point measures 36*36 mm

Power Supply / Consumption:

Voltage: 5 volts
LCD Mode: 9mA
LED Mode: 100mA (influenced by light intensity)

Communication:

LCD Modules are controlled via RS485

Built-in light sensor

Each LCD point can be individually controlled via RS485 communication

The intensity of each LCD point’s 16 LEDs can be controlled via RS485 communication

LCD Modules can be serially connected via flat cable or an external circular connector

4 conductors include: +5 volts, 0 volts, RS485 +, RS485 -

Connectivity

Up to 5 LCD Modules in LED mode can be powered on the same RS485 bus via USB

Up to 50 LCD Modules in LCD mode can be powered on the same RS485 bus via USB

Each LCD Module is addressed from 0 to 255 in the x and y axes

Maximum modules on a bus: 50 * 36, equivalent to an area of 10*10 meters

Top-left corner always has the address 0,0

First LCD Module has address 0,0; second module in line 0 has address 6,0

First LCD Module in the second row has address 0,8; second module has address 6,8

Pricing:

Individual unit price: DKK 2,493.00 (Contact us for quantity discounts)

Prices exclude taxes and are ex-warehouse.

Existing options with MEGA LCD:

MEGA LCD Modules can be integrated into finished products with a Control Box

The Control Box manages LCD Modules, providing users with easy and clear operation

The Control Box is tailored for specific task

The XXL-LCD can be controlled by PC for broader usage scenarios with same connection of modules

Other Examples:

Hall and Conference Area Clock:

Comprising 5 LCD Modules displaying hours (in 24-hour format) and minutes (TT:MM)

Width with frame: 104 cm

Height with frame: 32 cm

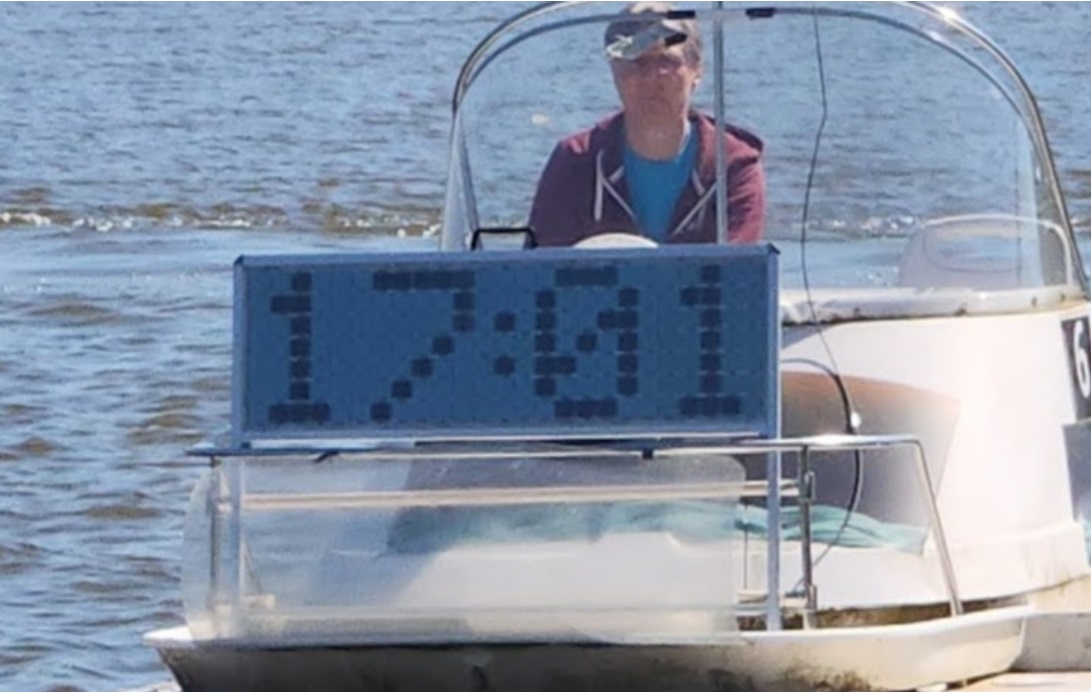

Mobile Stopwatch:

Constructed with 5 LCD Modules showing minutes and seconds

Width: 104 cm

Height without legs and handles: 32 cm

Control Box features 3 AA batteries (50 hours of operation), 3 buttons for operation, and an external input to start the stopwatch

Note:

For detailed installation and usage instructions, contact us for product information.
