Overview

The USB to RS485 creates an interface for all our RS485 products

Communication:

LED110 are controlled via RS485

Each LED110 point can be individually controlled via RS485 communication

LED110 can be serially connected via flat cable or an external circular connector

Multiple LED110 can co-exists with same address

4 conductors include: +5 volts, 0 volts, RS485 +, RS485 -

Default address for LED110 is 0x20

Usage Scenarios:

Connect a PC to LED110 or XXLLCD

Power injection via USB Power Bank

Power injection via external 5 volt DC power supply

Technical specifications

Power Consumption:

LCD Mode: 9mA per module; Maximum of 50 modules on USB

LED Mode: 100mA per module; Maximum of 5 modules on USB (Power consumption varies with LED intensity)

Physical Dimensions:

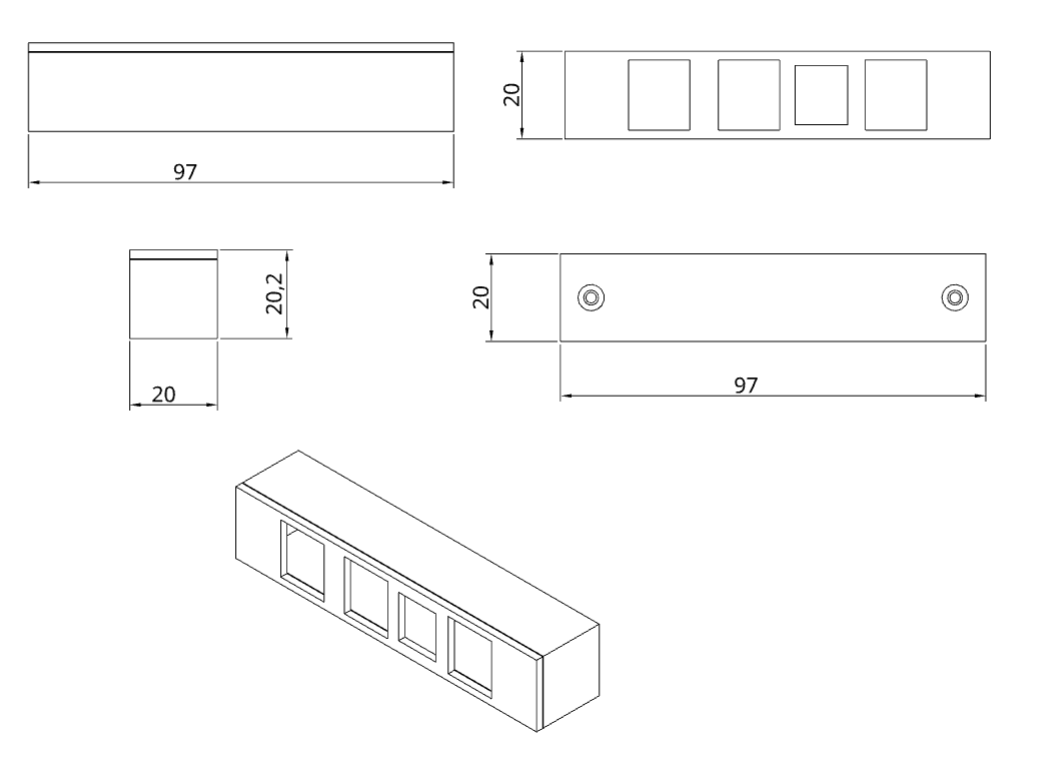

Overall Width: 97 mm Overall Height: 20.2 mm Overall Width: 29 mm

Power Supply / Consumption:

USB: 5 volts 0.5 watts

Communication:

Serial port over USB on Windows / Mac / Linux

Serial connection data

Baud: 115200

Parity: None

Data bits: 8

StopBits: 1

Connection:

1 * USB B plug for communications

3* RJ45 for connection to other products

Each RJ45 port is parallel connected to the other

Pricing:

Individual unit price: DKK 445.00

Prices exclude taxes and are ex-warehouse

Contact us for quantity discounts

Existing Products with USB-RS485:

Power Tool drag race track lights

LED110 test rig

XXL Stop watch for power injection

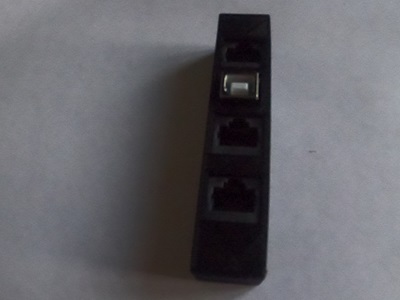

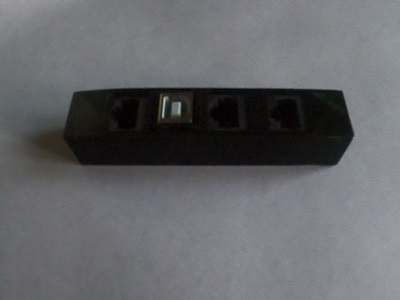

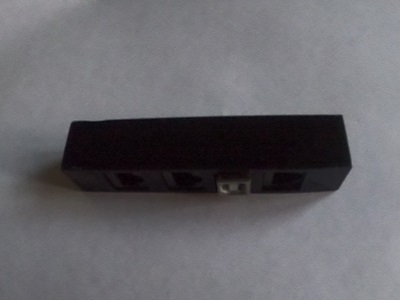

Photos

Note:

For detailed installation and usage instructions, refer to the product manual.
