LED110 for games, race track, score boards and much more.

LED110 can be integrated all the places where you have some kind of computer to to control it.

alt

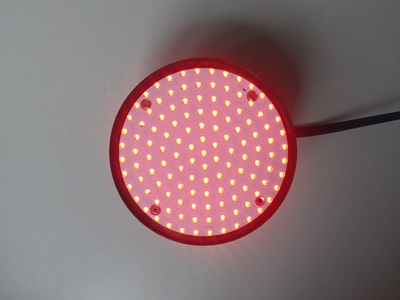

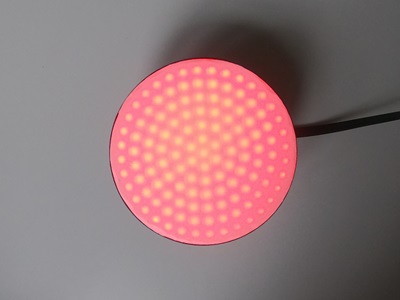

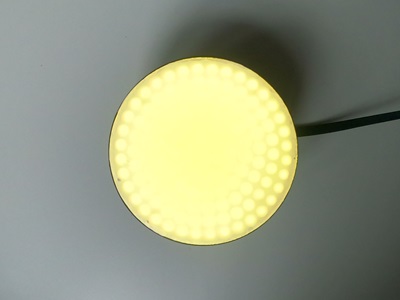

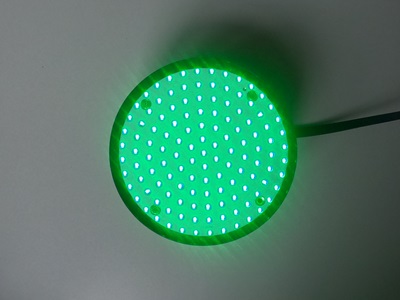

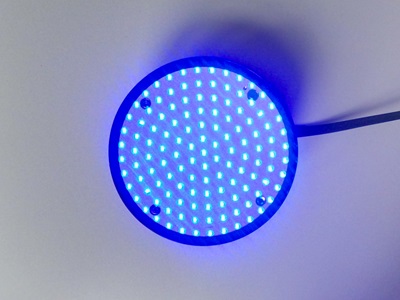

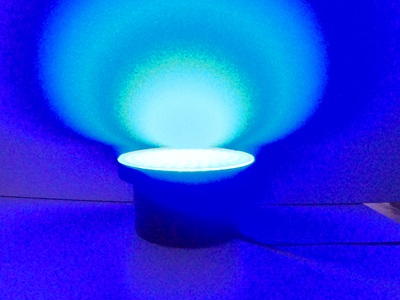

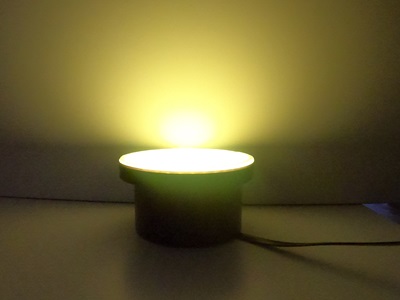

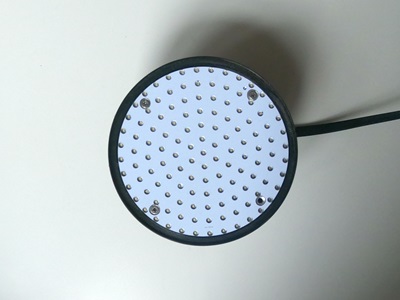

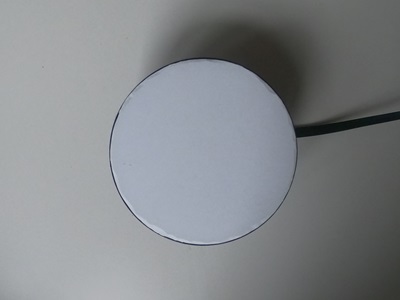

The LED110 offers versatile control for each individual color intensities, ranging from 0 to 999, allowing for a myriad of combinations. With its dynamic features this LED module is suitable for various applications.

Light Indicators - Main Features:

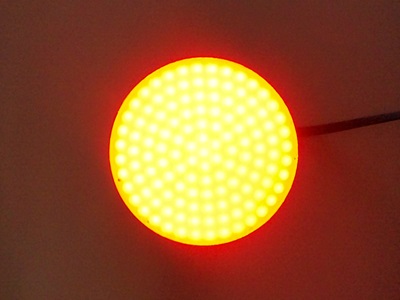

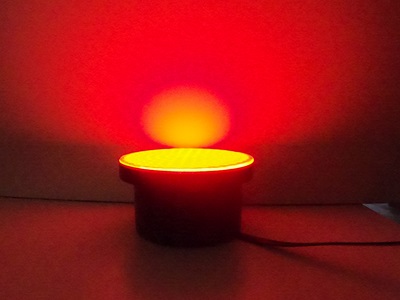

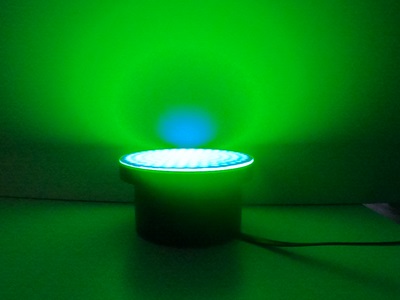

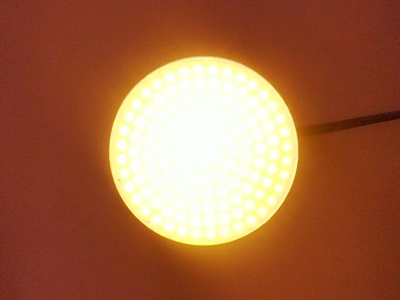

Colors: Red, Green, and Blue.

Individual color brightness control: Customize the intensity of each color independently.

Computer-Controlled: Manage up to 7 lamps conveniently from a computer via ModBus.

Bus Connectivity: The LED110 can be connected to a common bus

Control protocol: RS485/ModBus protocol.

Applications:

alt

Reaction Games:

In games where precision matters, the LED110 enhances the experience with its sequential lighting. Five LED110s illuminate in sequence, challenging users to hit them to score points.

PowerTool Drag Racer Track:

Elevate the excitement of drag racing with the LED110.

The track features a tower with 5 starting lamps, and the LED110 serves as an indicator for the winner’s lane.

Technical Specifications

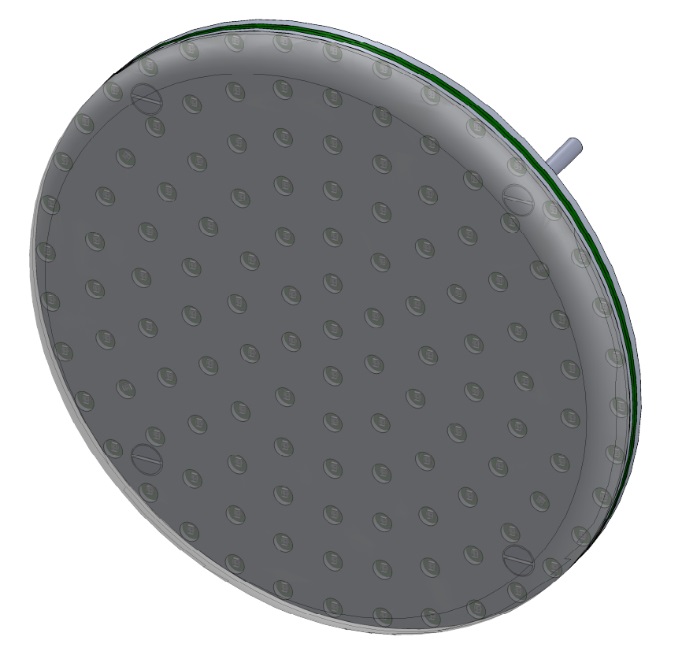

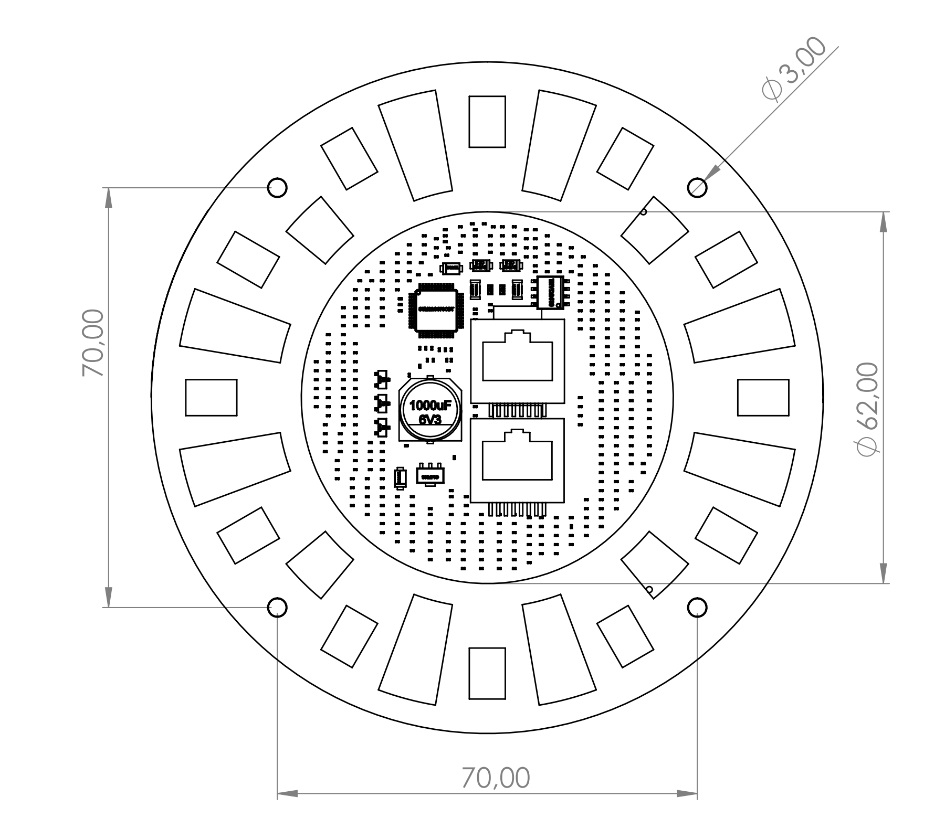

Physical Dimensions

Diameter: 110 mm

Total Height Without Connector: 10 mm

Total Height With Connector: 30 mm

Connector: Standard RJ45 (network) cables and plugs

alt

Power Supply / Power Consumption

Rated voltage: 5 volts Max Current Consumption: 500mA

Current can be supplied from USB or external power supply

Communication:

LED110 are controlled via RS485

Each LED110 point can be individually controlled via RS485 communication

LED110 can be serially connected via flat cable or an external circular connector

Multiple LED110 can co-exists with same address

4 conductors include: +5 volts, 0 volts, RS485 +, RS485 -

Default address for LED110 is 0x20

Pricing

Individual unit price: DKK 497.00 (Contact us for quantity discounts)

Prices exclude taxes and are ex-warehouse.

Notes

For detailed installation and usage instructions, refer to the product manual. The LED110 is designed to offer flexibility and control in various scenarios, making it a valuable component for interactive lighting setups and applications requiring dynamic visual cues.

If alle 3 colors are set to 100% brightness, the USB port can be damaged due to overload, use external power supply
