Overview

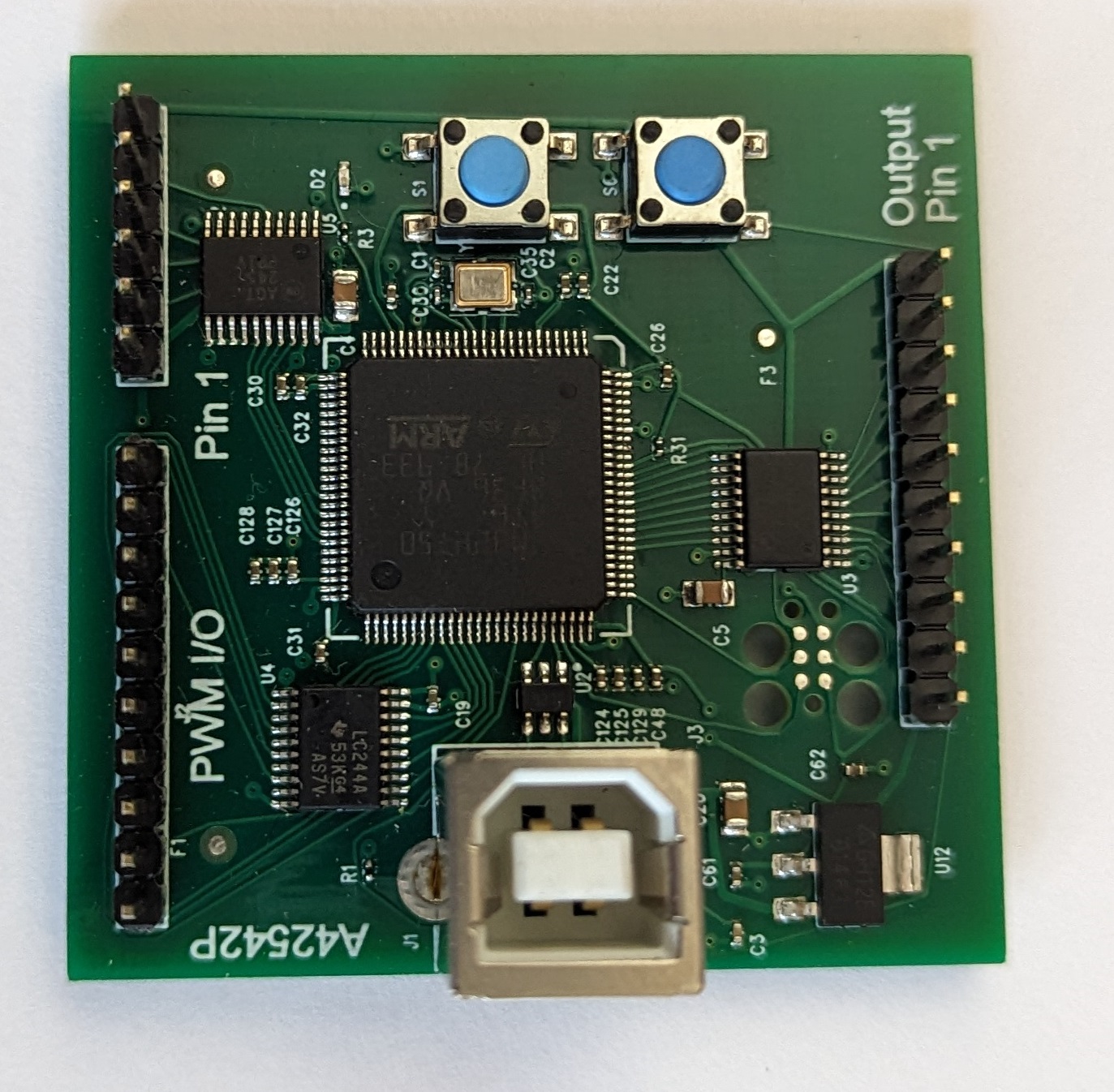

An Input output board with 8 input and 8 outputs, plus 4 PWM outputs.

Key features:

USB interface with USB-B plug, for control land power supply. STM32 ARM Processor - STM32H750VBT6 Onboard reset button Onboard programmable button for any purpose Onboard LED, for keep alive or other purpose Output connector Input connector PWM output JTAG

alt

Output connector

Connected via buffer chip, to protect the MCU

  • Pin 1 - 0 volt
  • Pin 2 - PD-07
  • Pin 3 - PD-06
  • Pin 4 - PD-05
  • Pin 5 - PD-04
  • Pin 6 - PD-03
  • Pin 7 - PD-02
  • Pin 8 - PD-01
  • Pin 9 - PD-00
  • Pin 10 - +5 volt

Input connector

Connected via buffer chip, to protect the MCU

  • Pin 1 - +5 volt
  • Pin 2 - PD-15
  • Pin 3 - PD-14
  • Pin 4 - PD-13
  • Pin 5 - PD-12
  • Pin 6 - PD-11
  • Pin 7 - PD-10
  • Pin 8 - PD-09
  • Pin 9 - PD-08
  • Pin 10 - 0 volt

PWM Output

  • Pin 1 - +5 volt
  • Pin 2 - PE-09 - Can be timer controlled
  • Pin 3 - PE-11 - Can be timer controlled
  • Pin 4 - PE-13 - Can be timer controlled
  • Pin 5 - PE-14 - Can be timer controlled
  • Pin 6 - 0+ volt

Hardware version

  • PC_0 - pulled low
  • PC_1 - pulled low
  • PC_2 - pulled low

On board LED

  • Connected to PA_0

Button

  • Connected to PA_8

JTAG

  • Plug type: PLUG-OF-NAILS 6-PIN

USB

  • Plug type: USB-B
  • PA-12 (UART)
  • PA-11 (UART)

Pricing and availability

Produced on request to keep stock to a minimum.

Pricing on request, as MCU and other elements vary from day to day.
